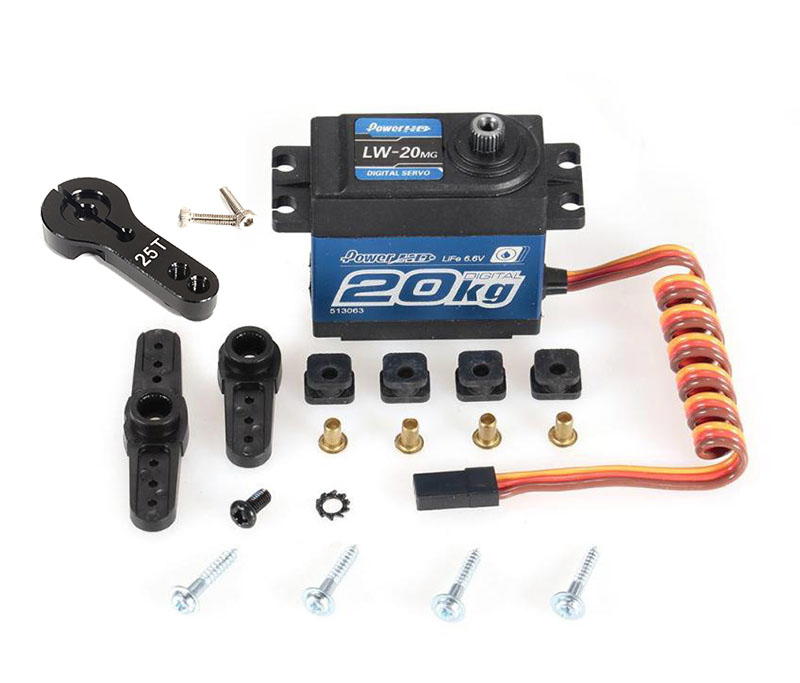

The Power HD LW-20MG is the latest servo that features an all-aluminum case, copper and aluminum gears, a powerful coreless motor and it pulls up to 20kg-cm of torque at a speed of 0.16s. The standard sized servo is also waterproof making this a great servo for crawlers, 1/10 - 1/8 scale trucks and buggies. It comes black anodized and with laser-etched graphics. Features: Specs: Note: When the digital steering gear is subject to resistance will be issued a continuous creak current sound, the greater the resistance sound the more loud, this is a normal phenomenon. Not for use underwater. Item# C30386 Barcode: 91789039232
• High speed / high torque 4.8-6.6v waterproof servo
• Suitable for scale Crawlers and 1/10 - 1/8 scale buggies and trucks
• All aluminum housing for excellent durability
• Heat resistant coreless motor
• Waterproof blue case
Torque(4.8V): 16.5 kg-cm (229.1 oz/in)
Torque(6.6V): 20.0 kg-cm (277.7 oz/in)
Speed: 0.18 sec (4.8V) │ 0.16 sec (6.6V)
Operating Voltage: 4.8 ~ 6.6 DC Volts
Weight: 60g (2.12 oz)
Bearing Type: Ball Bearing x 2
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Gear Type: Digital
Motor: Coreless
Operating Temperature: -20℃~60℃
Working frequency: 1520μs / 333hz
Size: 40.7x20.5x39.5mm (1.60x0.80x1.55 in)
Spline: 25
