1:12 JIMNY RTR Green FMS11221RTRGN

Movable Artwork in RC World - 1/12 SUZUKI Jimny

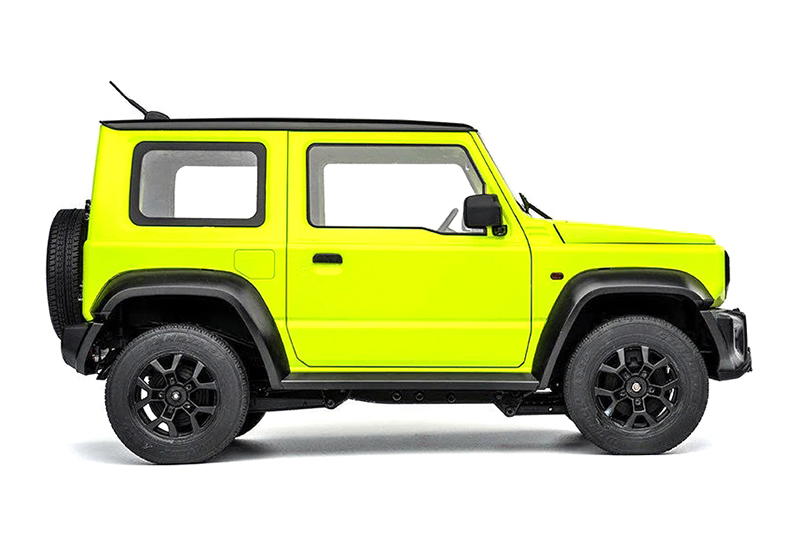

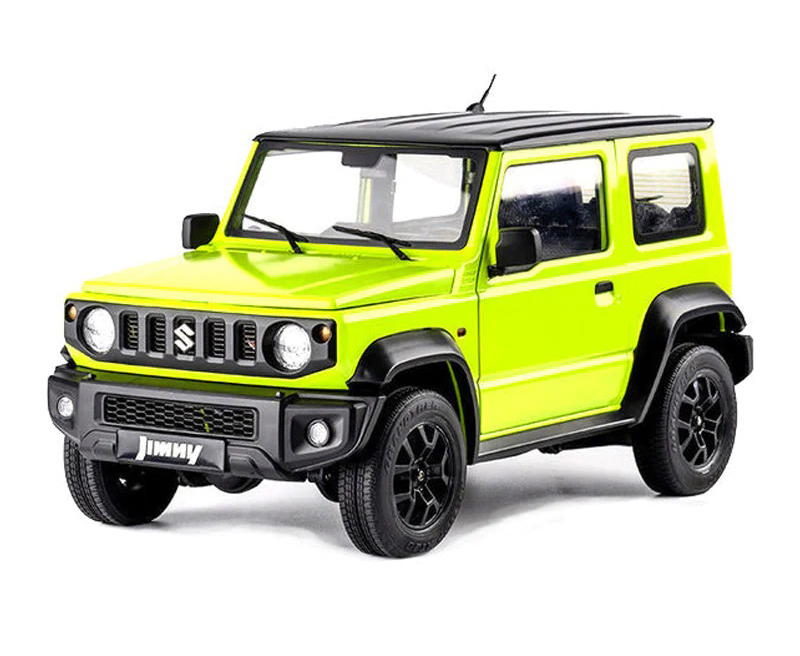

The officially licensed 1:12 scale Suzuki Jimny from FMS is an incredibly detailed and functional RC scaler. From the amazingly detailed interior, to the exterior body, chassis and suspension, this is an RC model that is based on its great role model in almost every area. The 1:12 Suzuki Jimny is ready to conquer the wilderness with you.

To create this officially licensed RC version of the 2021 Jimny, FMS engineers faithfully reproduced the full-size vehicle’s design & detail in versatile 1/12 scale. By including unexpectedly accurate features like a foldable rearview mirror, the FMS Suzuki Jimny marks a new high standard for RC realism. Its elaborate light system raises the bar even higher. Full-function LED headlights offer low & high-beam options, as well as working turn signals, fog lights, and brake lights.

Highlight

• From the amazingly detailed interior, outer body, or chassis and suspension, this is an RC model that replicates its full-size counterpart in virtually every area. The 1:12 Suzuki Jimny is ready to conquer the wilderness.
• Realistic Body Details
•  Officially licensed product of the Suzuki Motor Corporation.
•  Ready-to-Run 4WD.
•  Painted body in the original coating, with stainless marks using the photo-etc.hing technique.
• Electroplating Suzuki logo and light cups.
•  Photo-etc.hing honeycomb grille and authentic movable rear-view mirror.
• Fine wheel artwork mounted with natural rubber tires.
• Bumpers, wheel fenders and roof can be disassembled for personal modification.
• Outstanding car light system with up to 15 LEDs.
• Headlights: Full Beam / Dipped
• Turn signals: Activated when turning / Dual flash switch
• Fog lights: Front & rear fog lights can be activated remotely
• Brake lights: Activated when parking
• Reverse lights: Activated when reversing

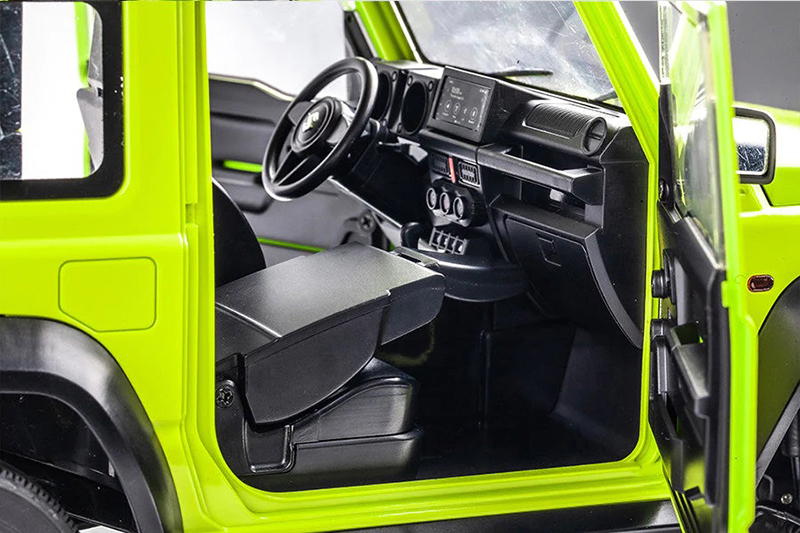

CHIC INTERIOR

• Lift the hood for a featured lifelike scale engine with delicate detailing.
• Side doors open similar to the real Jimny.
• The steering wheel is driven by an independent servo, linked to the front wheel steering.
• Adjustable front seats, a perfect match for 1:12 figures.
• Open the backdoor, flatten the rear seats and enjoy some spacious storage!
• Trunk area features a hidden storage area.
• Super detailed interior and dashboard.

ROBUST CHASSIS

• Solid frame-full chassis structure.
• Metal frame rails.
• Front & rear 3-link rigid axle suspension with coil spring.
• The scale engine houses a 180 motor with a two-speed transmission.
• Metal gears.
• 25 stainless steel ball bearings.
• Metal U-joint drive shafts.
• Battery, servo, receiver, ESC, light control — all under the hood.

What's in the box :

• 1 x FMS 1/12 Jimny RTR Crawler
• 1 x 2.4GHz Transmitter
• 1 x 2-in-1 ESC & Receiver (installed)
• 1 x 180-Size Brushed Motor (installed)
• 1 x 9g Digital Servo (installed)
• 1 x Durable Injection Molded Carrying Case
• 1 x USB Charger
• 1 x Hex Wrench Socket
• 1 x Product Manual

Need to complete:

• AAA Batteries for Radio

Specification:

Radio Control: 152 x 75 x 167mm, 150g (Battery not included)
Model Vehicle: 291 x 135 x 158mm, 985g(Battery not included)
Tire: D:60mm , W:15mm
Wheel Base: 187mm
Ground Clearance: 16mm
Approach Angle: 61°
Departure Angle: 60°
Driving Speed: up to 8km/h
Remote Distance: 30m
Play Time: 20 minute

Item# FMS11221RTRGN Barcode: 91789046342

Experienced Installation Required
Integy products are designed for experienced RC enthusiasts. Unless included with the product itself, most of our products do not include instructions. The purchaser is responsible for any product assembly/disassembly, any set-up and adjustment, and periodic maintenance. If you need help disassembling your stock vehicle, you will need to refer to the instruction manual/exploded parts view of your particular vehicle, as provided by the manufacturer of your vehicle. If you are unable to assemble and/or install a product, please consult your local Integy dealer for assistance.

Assembly and Pre-installation Prep
All products will require some prep out of the package. Some items (shocks, gearboxes, axles, etc.) are assembled for packaging purposes only, and may require standard prep before installation and usage, such as shimming for proper alignment, checking tightness of all components and fasteners, installing your own shock oil, anti-seize, threadlock, or grease. Please be sure to apply threadlock on all metal-to-metal interfaces prior to installation; do not just install the item out of the package and assume they have been prepped correctly. Check, adjust, and set/reset all new items when taken out of the package. Some items may need final adjustment after installation.

Wheel and tire sets may be sold partially assembled for packaging purposes only and require standard wheel/tire prep before installation and usage. All wheels and tires require CA glue (if press-fit style) or separate assembly (if beadlock style) before being used. Wheels and tires are not always pre-glued from the factory (unless specified in the product name or description).

A Note About Hardware
Unless specified, not all products include hardware; if new or different-sized hardware and/or fasteners are included with the upgrade kit, those are meant to replace the factory hardware. Extra hardware, shims, or spacers may be required for some installations. Due to factory supply delays beyond our control, certain products may ship with hardware (screws, washers, etc.) that is different from what is originally shown in the website product photos. Any alternates will be compatible hardware that will not affect the functionality of the product.

1st/3rd-party Compatibility
Certain Integy-branded items replacing OEM parts may not be compatible with another Integy-branded items due to design language.  Some parts may require permanent modification to the vehicle for fitment and may eliminate certain OEM features. Some items may require modification to the vehicle for proper clearance. Parts are for specified usage only. We do not guarantee compatibility with other aftermarket items.

What does "RTR" or "ARTR" Mean?
When a product is labelled RTR ("Ready To Run") it generally means that the vehicle chassis is assembled, and electronics are installed. You may still need some final items for operation (i.e. transmitter alkaline batteries, main battery pack and charger, paint for the body, etc.). When a product is labelled "ARTR" generally this means the same as "RTR" but without an included radio system and/or radio components. Please refer to the product description for additional details; no additional items are included unless specifically stated in the product description.

Product Photo Accuracy
Products show in photos may be updated at the production level and replaced by updated versions; we will always ship the most recent version to the customer. Colors shown in product photos are as close to possible to the actual item; color matching between parts is not guaranteed.
