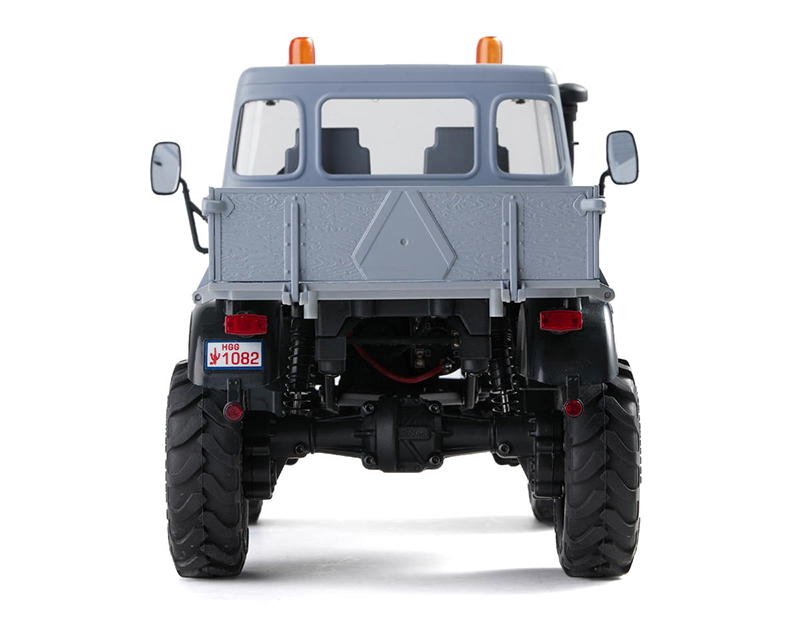

Authorized by Daimler-Benz AG, this 1/24 scale remote-controlled simulation model of the Unimog421, introduced by FMS, maintains a consistently high level of visual simulation. This model is designed for typical special transport scenarios and can handle transportation tasks in complex road conditions. It features a highly restored grille, widened rear-view mirrors and snorkel, and two orange warning lights on the roof. Through the windows, you can see the exquisite dashboard and cabin interior. The engine hood can be opened, providing convenience for battery replacement, and it also serves as a storage space for the electronic board of the remote control system. In addition, the rear cargo compartment and the three-side wall panels are made of wood. We have carved intricate patterns on the model car to simulate the texture of real wood. Features: What's In The Box: Need To Complete: Specifications: Length: 249mm Item# FMS12405RTRGY Barcode: 91789046379
Unimog adopts the FCX24 series high-performance crawler chassis (with added realistic parts like fuel tank, accumulator on). The car frame is made of high-strength nylon. Compared to the trapezoidal beam spliced by metal side beams and plastic trusses, the overall weight is lighter and the strength is higher. The mid-mounted power assembly has a low center of gravity and integrates the 2-speed transmission, transfer case and 130 motor. The power is transmitted to the front and rear axles through the universal joint Driveshaft. The axles are equipped with wheel side reducers, commonly known as "portal axle", which can increase the ground clearance of the differential tooth pack and improve passability.
1 x 1:24 Unimog 421 RTR
1 x G3 Transmitter
1 x R3A Receiver with ESC Group Control Board (installed)
1 x 130 Brushed Motor (installed)
1 x USB Battery Charger
1 x Hex Wrench Socket
1 x Product Manual
4 x AAA Batteries for Transmitter
Width: 153mm
Height: 160mm
Wheelbase: 142mm
Tire F/R: 20mm
Minimum Ground Clearance: 40mm
Approach Angle: 49°
Departure Angle: 69 °
Motor: 130 Brushed motor
Remote control distance: 30m
Approx. operating duration time: 20mins
Remote control: G3+ R3A transmitter, receiver with ESC group control board
