OVERVIEW Item# C25799SILVER Barcode: 91789020872

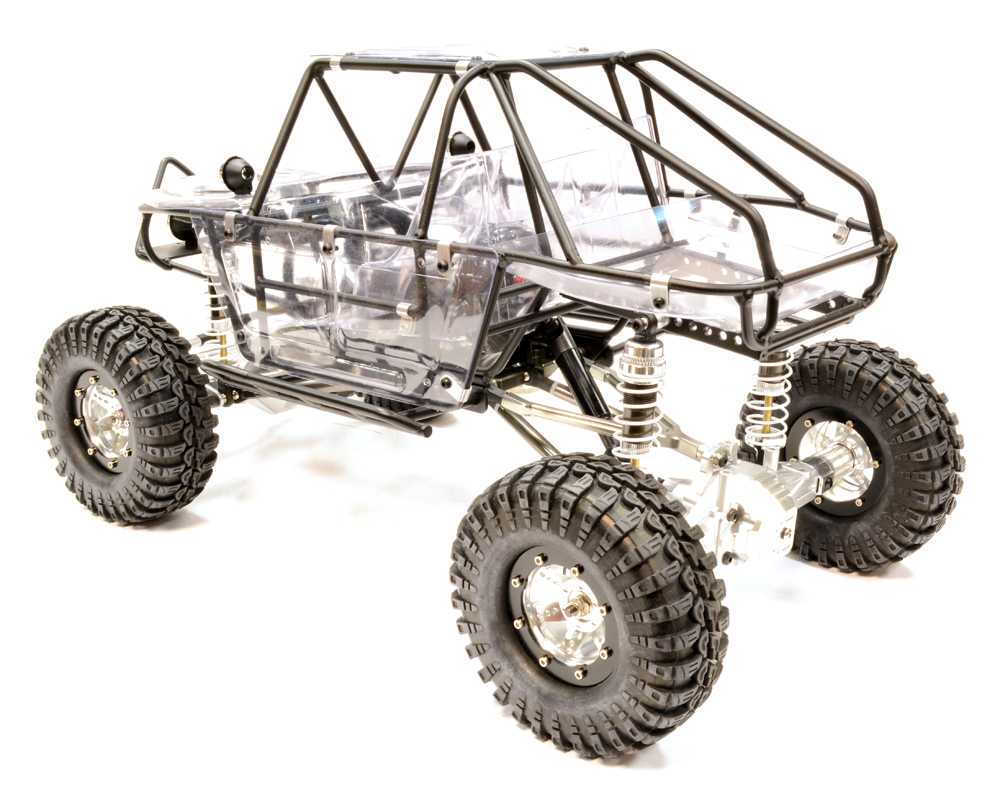

Our new 1.9 Billet Machined RCT Trail Racer brings the performance of our Vex 2.2 to 1.9-class specs. This ARTR (Almost Ready to Run) chassis is trail-ready from the start, and it begins with its realistic scale-looking steel roll cage chassis with matching bolt-on steel rock sliders. On top of the center alloy skid plate, you'll find a reliable, heavy duty 3-gear all-metal transmission with a standard slipper clutch. Steel telescoping drive shafts connect to full alloy axles that feature all metal internals with ball bearings for smooth rolling. Each of the RCT's corners feature adjustable, oil-filled alloy shocks with adjustable shock mounting positions. Completing the package are realistic body panels (in clear, so you can paint them in your choice of color), four LED spot lights, and pre-mounted high grip crawler tires on beadlock true wheels. More specifications below:
Billet aluminum alloy components:
- Front and rear axle housings
- Front and rear suspension links
- Front and rear suspension mounts
- Front and rear axle linkage mounts
- Front hub carriers
- Front knuckles
- Rear lockouts
- Beadlock wheels
- Transmission case
- Shock bodies and caps
- Spring retainers
- Pumpkin covers
- Heatsink motor plate
- Center skid plate
- Steering linkage
- Steering servo mount
- Hex wheel drives
- Body mount posts
More features:
- Fully welded steel roll cage chassis
- Full drivetrain/transmission ball bearings
- Full metal internal gears in axles
- Full metal internal gears in transmission
- 48-pitch metal spur gear
- 24t pinion gear
- HD universal slider shafts
- HD universal drive axles
- Adjustable slipper clutch
- Molded battery box
- Lexan body panels
- Lexan hood and roof panels
- LED spot lamps
- Adjustable wheelbase
- Adjustable shock positions
- Adjustable ride height
- Pre-mounted high grip 1.9 crawler tires
- Oil-filled shocks
- Threaded shock bodies
- Built-in winch mounting plate
- Hex head hardware
Specifications:
Overall length: 16.53-inches (420mm)
Overall width: 9.29-inches (236mm)
Wheelbase: 11.41-inches (290mm)
Chassis clearance (center skid): 2.95-inches (75mm)
Weight: N/A
To complete this chassis you will need:
- 2-channel radio system
- Steering servo w/20mm servo horn
- Electronic Speed Controller
- Motor
- Battery
- Battery Charger
NOTE: Instructions for assembly or operation are not included; if you need assistance, please ask your local Integy dealer. Before operation, please check all metal-to-metal fasteners for tightness,
Experienced Installation Required
Integy products are designed for experienced RC enthusiasts. Unless included with the product itself, most of our products do not include instructions. The purchaser is responsible for any product assembly/disassembly, any set-up and adjustment, and periodic maintenance. If you need help disassembling your stock vehicle, you will need to refer to the instruction manual/exploded parts view of your particular vehicle, as provided by the manufacturer of your vehicle. If you are unable to assemble and/or install a product, please consult your local Integy dealer for assistance.
Assembly and Pre-installation Prep
All products will require some prep out of the package. Some items (shocks, gearboxes, axles, etc.) are assembled for packaging purposes only, and may require standard prep before installation and usage, such as shimming for proper alignment, checking tightness of all components and fasteners, installing your own shock oil, anti-seize, threadlock, or grease. Please be sure to apply threadlock on all metal-to-metal interfaces prior to installation; do not just install the item out of the package and assume they have been prepped correctly. Check, adjust, and set/reset all new items when taken out of the package. Some items may need final adjustment after installation.
Wheel and tire sets may be sold partially assembled for packaging purposes only and require standard wheel/tire prep before installation and usage. All wheels and tires require CA glue (if press-fit style) or separate assembly (if beadlock style) before being used. Wheels and tires are not always pre-glued from the factory (unless specified in the product name or description).
A Note About Hardware
Unless specified, not all products include hardware; if new or different-sized hardware and/or fasteners are included with the upgrade kit, those are meant to replace the factory hardware. Extra hardware, shims, or spacers may be required for some installations. Due to factory supply delays beyond our control, certain products may ship with hardware (screws, washers, etc.) that is different from what is originally shown in the website product photos. Any alternates will be compatible hardware that will not affect the functionality of the product.
1st/3rd-party Compatibility
Certain Integy-branded items replacing OEM parts may not be compatible with another Integy-branded items due to design language. Some parts may require permanent modification to the vehicle for fitment and may eliminate certain OEM features. Some items may require modification to the vehicle for proper clearance. Parts are for specified usage only. We do not guarantee compatibility with other aftermarket items.
What does "RTR" or "ARTR" Mean?
When a product is labelled RTR ("Ready To Run") it generally means that the vehicle chassis is assembled, and electronics are installed. You may still need some final items for operation (i.e. transmitter alkaline batteries, main battery pack and charger, paint for the body, etc.). When a product is labelled "ARTR" generally this means the same as "RTR" but without an included radio system and/or radio components. Please refer to the product description for additional details; no additional items are included unless specifically stated in the product description.
Product Photo Accuracy
Products show in photos may be updated at the production level and replaced by updated versions; we will always ship the most recent version to the customer. Colors shown in product photos are as close to possible to the actual item; color matching between parts is not guaranteed.
Very Cool Scale Crawler
It's hard to beat the looks of this crawler, and the aluminum components are very cool. Overall quality, welds and part fit are very good. Minor assembly needed (body panels and LED lights). No instructions included, so you will need to pull photo's off of the web and study them for some of the assembly work. Shipping was very fast to Texas. I recommend this RC vehicle for anyone like's aluminum on their crawler.
