i10BAJA High Performance Brushless RTR 1/10 Baja 2WD Buggy C24614BLUE

OVERVIEW

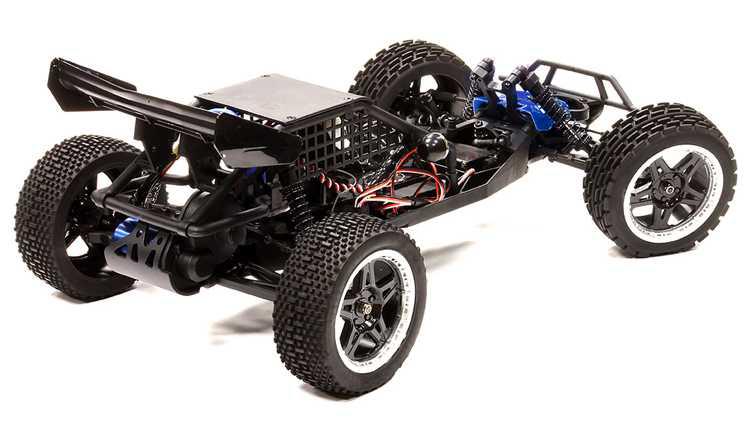

Hit the desert dunes, the local playground, or even your backyard with the i10BAJA High Performance Brushless RTR 2WD Buggy. Designed to emulate the look and feel of desert racing buggies, this 2WD machine is available in a complete package that is ready to run and fun to drive. Starting with a durable, molded tub chassis with removable front bulkhead and rear gearbox mounts, the chassis design allows you to position the battery pack forward for more steering or towards the rear for more traction. The i10BAJA is powered through a simple but race-proven 3-gear transmission that drives the rear wheels through a durable gear differential. An adjustable slipper clutch is standard equipment, as are steel long-reach dogbones and axles. All-terrain tires are pre-mounted and pre-glued from the factory, ready to roll. You will also find a set of ball bearings throughout the drivetrain.
Long suspension arms and upper adjustable turnbuckles pair with oil-filled shocks with threaded preload adjustment and adjustable mounting angles to handle the bumps and jumps. There are also turnbuckles on the dual bellcrank steering system for toe adjustability. A built-in servo saver helps protect the steering system from damage.
The race-derived desert buggy body is already precut and prefinished, and the highlight of the body is the molded roll cage, hard roof and hard wing, and included LED flood lights mounted to the sides. A simulated driver figure helps add to its realistic looks. The RTR version is available in red or blue paint schemes, and includes a pre-installed 802w brushless ESC and 3300Kv sensorless brushless motor that gives the i10BAJA an extremely fast top speed, especially if you power it with a 3S LiPo battery. Control is provided by a GT3 3-channel 2.4GHz radio system.
CHASSIS
Molded tub design w/adjustable battery positioning
Molded battery stay
Detachable front bulkhead mount
Detachable rear gearbox mount
Impact absorbing front bumper
DRIVETRAIN
Rear gear differential
Adjustable slipper clutch
Molded gear cover
Adjustable motor mount
Rear steel dogbones and axles
Full ball bearings in drivetrain
SUSPENSION
Long-reach lower suspension arms
Turnbuckle adjustable upper links
Oil-filled dampers
Threaded damper bodies
Front metal suspension brace
Adjustable camber
Adjustable shock angle
Adjustable upper link mounting points
STEERING
Dual bellcrank design
Built-in servo saver
Adjustable front toe in/out
MORE
Pre-installed GT3 2.4GHz 3-channel pistol grip radio system
Pre-installed 820w brushless ESC
Pre-installed 3300Kv sensorless brushless motor
Pre-installed high-torque steering servo
Pre-painted body with driver figure
Molded roll cage
Molded rear wing
LED headlights
Pre-mounted and pre-glued pin-type tires
SPECIFICATIONS
Length:470mm (18.5-inches)
Width:290mm (11.4-inches)
Height:178mm (7.00-inches)
Wheelbase: 340mm (13.38-inches)
Weight:1700g (3 lbs. 11.9-oz.)
To get up and running you will need:
6-cell NiCd/NiMH or 2S LiPo battery pack

Installation Notes
Integy products are designed for experienced RC enthusiasts. Unless included with the product itself, most of our products do not include instructions. The purchaser is responsible for any product assembly/disassembly, any set-up and adjustment, and periodic maintenance. If you need help disassembling your stock vehicle, you will need to refer to the instruction manual/exploded parts view of your particular vehicle, as provided by the manufacturer of your vehicle. If you are unable to assemble and/or install a product, please consult your local Integy dealer for assistance.

All products will require some prep out of the package. Some items (shocks, gearboxes, axles, etc.) are assembled for packaging purposes only, and may require standard prep before installation and usage, such as shimming for proper alignment, checking tightness of all components and fasteners, installing your own shock oil, anti-seize, or grease. Please be sure to apply threadlock on all metal-to-metal interfaces prior to installation; do not just install the item out of the package and assume they have been prepped correctly. Check, adjust, and set/reset all new items when taken out of the package.

Wheel and tire sets may be sold partially assembled for packaging purposes only, and require standard wheel/tire prep before installation and usage. All wheels and tires require CA glue (if press-fit style) or separate assembly (if beadlock style) before being used. Wheels and tires are not always pre-glued from the factory (unless specified in the product name or description).

Unless specified, not all products include hardware; if new or different-sized hardware and/or fasteners are included with the upgrade kit, those are meant to replace the factory hardware. Extra hardware, shims, or spacers may be required for some installations. Some parts may require permanent modification to the vehicle for fitment, and may eliminate certain OEM features. Some items may require modification to the vehicle for proper clearance.

Due to factory supply delays beyond our control, certain products may ship with hardware (screws, washers, etc.) that is different from what is originally shown in the website product photos. Any alternates will be compatible hardware that will not affect the functionality of the product.

Certain Integy-branded items replacing OEM parts may not be compatible with another Integy-branded items due to design language.

Colors shown in product photos are as close to possible to the actual item; color matching between parts is not guaranteed. Parts are for specified usage only. We do not guarantee product compatibility with other aftermarket branded products.
