OVERVIEW Item# C28843

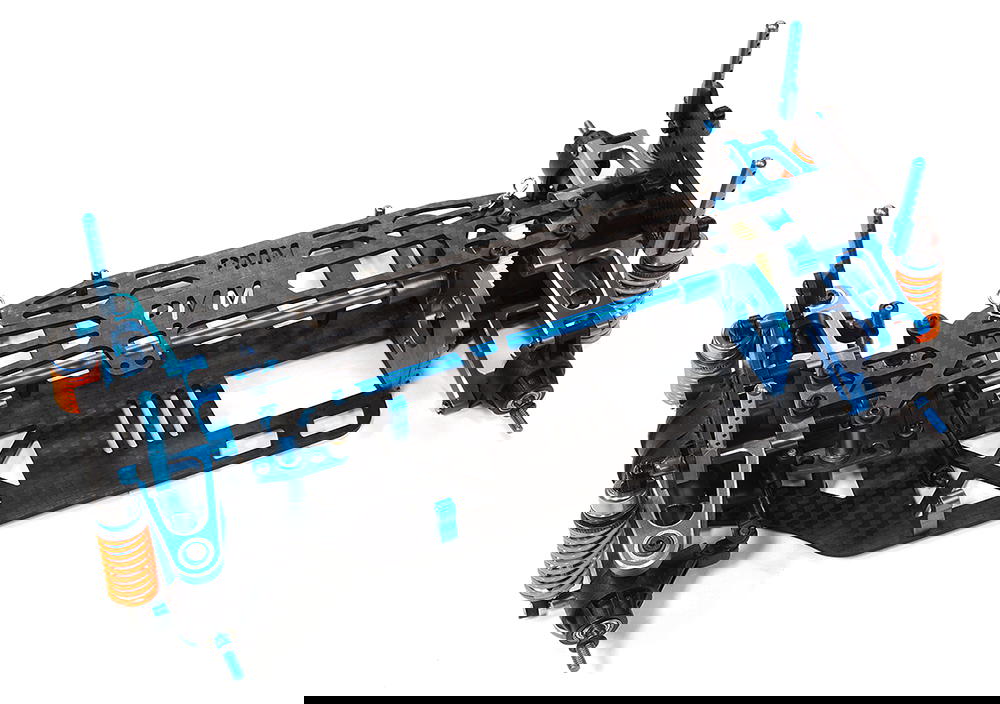

Hit the race track with a fully-modified shaft-driven touring car that is ready to take trophies. V3 features a host of aluminum parts including aluminum upper and lower arms for added suspension stiffness - good for high traction situations such as permanent race tracks or carpet tracks.
The carbon fiber double-deck chassis accepts NiCd/NiMH/LiPo batteries, and features motor cooling vents. A lightweight aluminum center driveshaft, aluminum differential outputs and dogbones add toughness, while the all aluminum steering and full ball bearings throughout the chassis reduce resistance for more speed. Oil-filled, threaded aluminum shock bodies allow you to fine tune ride height and spring preload. All of these features are optional on other brand chassis; you will spend more than twice the cost just to bring their chassis up to the spec of the V3!
Racing slick tires with molded inserts and aero dish wheels are included. Just glue the tires, install your own electronics and get racing!
CHASSIS
Carbon fiber double-deck
Carbon fiber battery stay
Carbon fiber front/rear bumper braces
High-density front/rear foam bumpers
All hex hardware
DRIVETRAIN
Front/rear gear differential
Anodized aluminum adjustable motor plate
Anodized aluminum center driveshaft
Anodized aluminum front/rear driveshaft output cups
Anodized aluminum front/rear differential output cups
Anodized aluminum front/rear dogbones
Anodized aluminum front/rear axles
Heavy duty alloy??front/rear wheel hexes
Anodized aluminum front/rear axle locknuts
Full ball bearings in drivetrain
24T/60Tpinion/spur
SUSPENSION
Carbon fiber front/rear shock towers
Anodized aluminum upper and lower suspension arms
Anodized aluminum oil-filled dampers
Threaded damper bodies
Anodized aluminum front/rear upper suspension mounts
Anodized aluminum front upper/lower suspension pivots
Adjustable front/rear shock angle
STEERING
Anodized aluminum steering arms
Anodized aluminum steering/top deck posts
Anodized aluminum servo mounts
Adjustable Ackermann, front toe in/out
Full ball bearings in steering system
MORE
Anodized aluminum front/rear body mounts
Racing slick tires with molded tire inserts
Aero-dish wheels
To get up and running you will need:
Radio system with 1 servo
Motor (1/10-scale size, brushless or brushed)
ESC (1/10-scale size)
6-cell NiCd/NiMH or 2S LiPo battery pack
06-module pinion gear (i.e. Tamiya)
Barcode: 91789035654
Installation Notes
Integy products are designed for experienced RC enthusiasts. Unless included with the product itself, most of our products do not include instructions. The purchaser is responsible for any product assembly/disassembly, any set-up and adjustment, and periodic maintenance. If you need help disassembling your stock vehicle, you will need to refer to the instruction manual/exploded parts view of your particular vehicle, as provided by the manufacturer of your vehicle. If you are unable to assemble and/or install a product, please consult your local Integy dealer for assistance.
All products will require some prep out of the package. Some items (shocks, gearboxes, axles, etc.) are assembled for packaging purposes only, and may require standard prep before installation and usage, such as shimming for proper alignment, checking tightness of all components and fasteners, installing your own shock oil, anti-seize, or grease. Please be sure to apply threadlock on all metal-to-metal interfaces prior to installation; do not just install the item out of the package and assume they have been prepped correctly. Check, adjust, and set/reset all new items when taken out of the package.
Wheel and tire sets may be sold partially assembled for packaging purposes only, and require standard wheel/tire prep before installation and usage. All wheels and tires require CA glue (if press-fit style) or separate assembly (if beadlock style) before being used. Wheels and tires are not always pre-glued from the factory (unless specified in the product name or description).
Unless specified, not all products include hardware; if new or different-sized hardware and/or fasteners are included with the upgrade kit, those are meant to replace the factory hardware. Extra hardware, shims, or spacers may be required for some installations. Some parts may require permanent modification to the vehicle for fitment, and may eliminate certain OEM features. Some items may require modification to the vehicle for proper clearance.
Due to factory supply delays beyond our control, certain products may ship with hardware (screws, washers, etc.) that is different from what is originally shown in the website product photos. Any alternates will be compatible hardware that will not affect the functionality of the product.
Certain Integy-branded items replacing OEM parts may not be compatible with another Integy-branded items due to design language.
Colors shown in product photos are as close to possible to the actual item; color matching between parts is not guaranteed. Parts are for specified usage only. We do not guarantee product compatibility with other aftermarket branded products.
