OVERVIEW Installation and User Manual: C28258 Manual for LED Multi-Function Lighting System (Universal Version) Item# C28258 Barcode: 91789030989

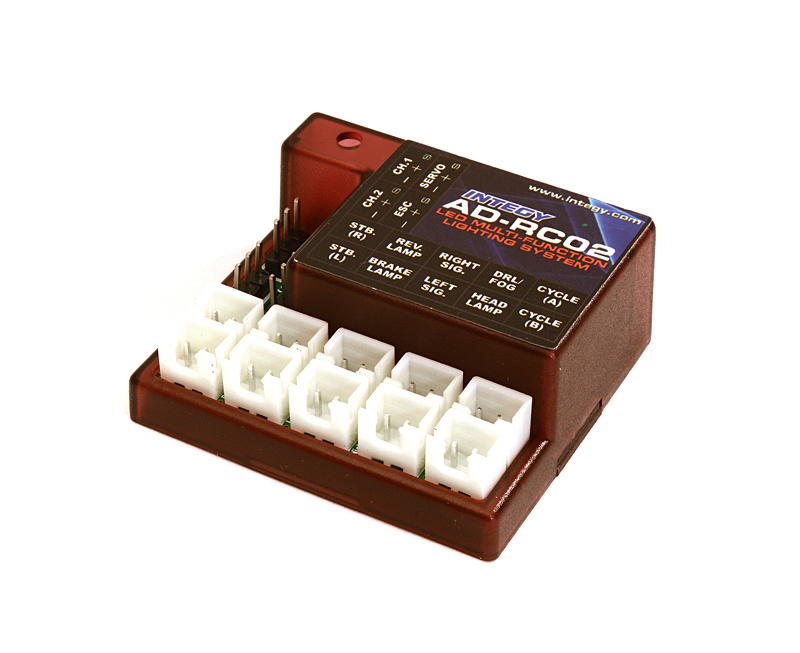

Our AD-RC02 LED Multi-Function Universal Lighting System brings your rig to the next level in realism! No programming cards or jumper switches needed - the AD-RC02 can be operated and programmed using your existing remote transmitter. Compatible with most 2-channel (or more) radio systems, the AD-RC02 features: multiple LED light functions, remote switchable head lamps from low-beam to high-beam to “off”, auto brake with 3 tail lamp modes, programmable proportional brake lamp intensity, programmable automatic reverse lamps with switchable reverse beep sound, and auto or manual turn signal modes.
The AD-RC02 is powered by your receiver's 5V-6V BEC so no extra external power source is required. This is the universal version designed so you can install LEDs into your own 1/10 scale rig or rock crawler body. There are also extra ports for our optional LED rock lamp kit (#C28259). The AD-RC02 LED Multi-Function Universal Lighting System includes all required cables for a plug-and-play installation.
Installation Notes
Integy products are designed for experienced RC enthusiasts. Unless included with the product itself, most of our products do not include instructions. The purchaser is responsible for any product assembly/disassembly, any set-up and adjustment, and periodic maintenance. If you need help disassembling your stock vehicle, you will need to refer to the instruction manual/exploded parts view of your particular vehicle, as provided by the manufacturer of your vehicle. If you are unable to assemble and/or install a product, please consult your local Integy dealer for assistance.
All products will require some prep out of the package. Some items (shocks, gearboxes, axles, etc.) are assembled for packaging purposes only, and may require standard prep before installation and usage, such as shimming for proper alignment, checking tightness of all components and fasteners, installing your own shock oil, anti-seize, or grease. Please be sure to apply threadlock on all metal-to-metal interfaces prior to installation; do not just install the item out of the package and assume they have been prepped correctly. Check, adjust, and set/reset all new items when taken out of the package.
Wheel and tire sets may be sold partially assembled for packaging purposes only, and require standard wheel/tire prep before installation and usage. All wheels and tires require CA glue (if press-fit style) or separate assembly (if beadlock style) before being used. Wheels and tires are not always pre-glued from the factory (unless specified in the product name or description).
Unless specified, not all products include hardware; if new or different-sized hardware and/or fasteners are included with the upgrade kit, those are meant to replace the factory hardware. Extra hardware, shims, or spacers may be required for some installations. Some parts may require permanent modification to the vehicle for fitment, and may eliminate certain OEM features. Some items may require modification to the vehicle for proper clearance.
Due to factory supply delays beyond our control, certain products may ship with hardware (screws, washers, etc.) that is different from what is originally shown in the website product photos. Any alternates will be compatible hardware that will not affect the functionality of the product.
Certain Integy-branded items replacing OEM parts may not be compatible with another Integy-branded items due to design language.
Colors shown in product photos are as close to possible to the actual item; color matching between parts is not guaranteed. Parts are for specified usage only. We do not guarantee product compatibility with other aftermarket branded products.
