Data is vital Tiny but Versatile The analyzer is powered by any universal Micro USB output or a power bank. How to Use Diff Analyzer Adapters Key specs Item# SK-500026-03 Barcode: 91789047984 Fitment and tips

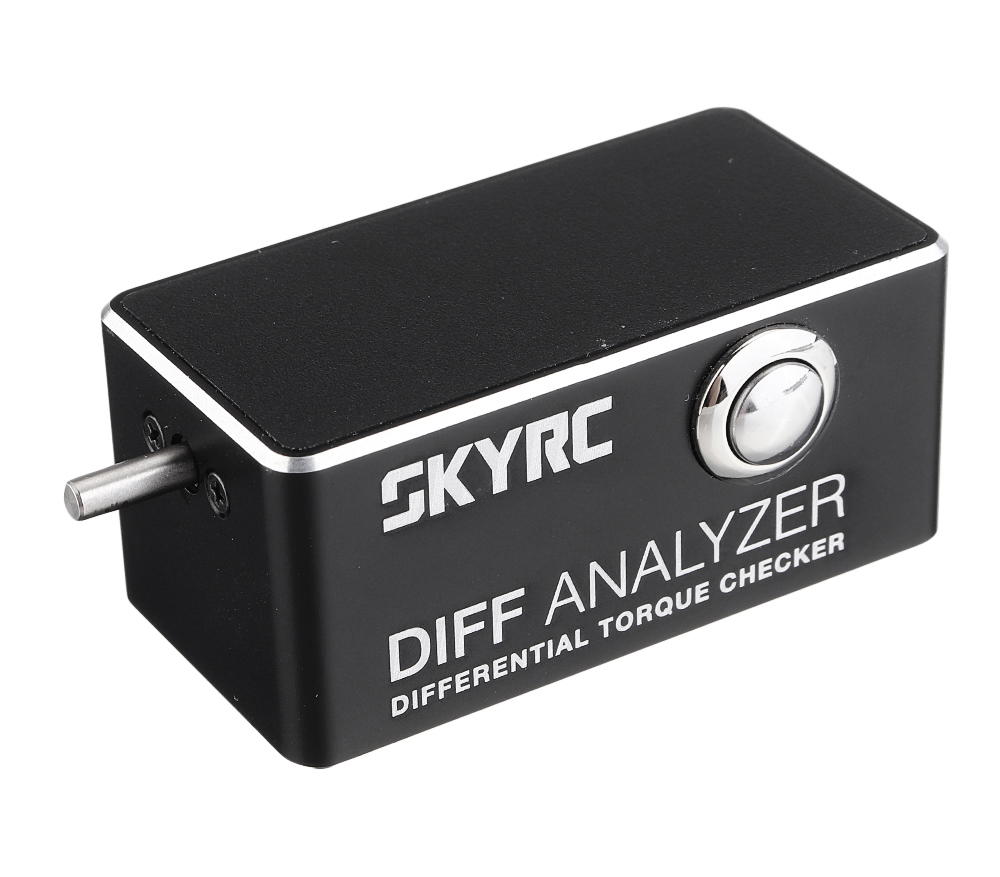

SkyRC has presented a Diff Analyzer for setting up and fine-tuning the hardness of differentials for 1/10th scale cars and Mini-Z. Diff Analyzer provides numeric data to which helps to assess or replicate a specific hardness. Changing the diff oil will not be by feeling or guessing anymore. The handy device helps measure the diff setting, ensuring consistent hardness after building and setup.
The Diff Analyzer have a precision unibody enclosure crafted from a single block of aluminum with anodized finish, resulting in thinner, more durable and incredibly beautiful designs. It comes out of the box with an adapter that allows you to measure 1/10th scale and Mini-Z. An adapter for 1/8th scale can be purchased optionally. Inside it is the key components that allow the spin and calculation of every kind of hardness of diff and viscosity of diff oil.
The device comes in a pocketable dimension of 54x28x24.8 mm weighing 59 g only.
Connect Diff Analyzer to a power bank or any regular Micro 5V USB port.
Connect the diff with the Diff Analyzer and press the power button. Diff Analyzer will show a numeric value for diff being tested. Test duration lasts around 3-5 seconds. Repeat the same procedure for other diffs to have numeric values to compare.
The Diff Analyzer is delivered with an adapter for the diff measurement not assembled on the model. There is also an adapter which allows measuring directly on the model for all scales.
Tip: Verify fitment with your specific model and existing hop-ups before installation.
Experienced Installation Required
Integy products are designed for experienced RC enthusiasts. Unless included with the product itself, most of our products do not include instructions. The purchaser is responsible for any product assembly/disassembly, any set-up and adjustment, and periodic maintenance. If you need help disassembling your stock vehicle, you will need to refer to the instruction manual/exploded parts view of your particular vehicle, as provided by the manufacturer of your vehicle. If you are unable to assemble and/or install a product, please consult your local Integy dealer for assistance.
Assembly and Pre-installation Prep
All products (including hop-ups, tools, chassis and electronics) may require some prep out of the package. Some items (shocks, gearboxes, axles, etc.) are assembled for packaging purposes only, and may require standard prep before installation and usage, such as shimming for proper alignment, confirming gear mesh, checking tightness of all components and fasteners, installing your own shock oil, anti-seize, threadlock, or grease. Please be sure to apply threadlock on all metal-to-metal interfaces prior to installation; do not just install the item out of the package and assume they have been prepped correctly. Check, adjust, and set/reset all new items when taken out of the package. Some items may need final adjustment after installation.
Wheel and tire sets may be sold partially assembled for packaging purposes only and require standard wheel/tire prep before installation and usage. All wheels and tires require CA glue (if press-fit style) or separate assembly (if beadlock style) before being used. Wheels and tires are not always pre-glued from the factory (unless specified in the product name or description).
A Note About Hardware
Unless specified, not all products include hardware; if new or different-sized hardware and/or fasteners are included with the upgrade kit, those are meant to replace the factory hardware. Extra hardware, shims, or spacers may be required for some installations. Due to factory supply delays beyond our control, certain products may ship with hardware (screws, washers, etc.) that is different from what is originally shown in the website product photos. Any alternates will be compatible hardware that will not affect the functionality of the product.
1st/3rd-party Compatibility
Certain Integy-branded items replacing OEM parts may not be compatible with another Integy-branded items due to design language. Some parts may require permanent modification to the vehicle for fitment and may eliminate certain OEM features. Some items may require modification to the vehicle for proper clearance. Parts are for specified usage only. We do not guarantee compatibility with other aftermarket items.
What does "RTR" or "ARTR" Mean?
When a product is labelled RTR ("Ready To Run") it generally means that the vehicle chassis is assembled, and electronics are installed. You may still need some final items for operation (i.e. transmitter alkaline batteries, main battery pack and charger, paint for the body, etc.). When a product is labelled "ARTR" generally this means the same as "RTR" but without an included radio system and/or radio components. Please refer to the product description for additional details; no additional items are included unless specifically stated in the product description. ARTR and RTR vehicles must be prepped by the user or a knowledgeable hobbyist prior to the first drive, as some details should be checked prior to driving i.e. tires and wheels are tight, gear mesh is correct, steering servo is centered, etc.
Product Photo Accuracy
Products show in photos may be updated at the production level and replaced by updated versions; we will always ship the most recent version to the customer. Colors shown in product photos are as close to possible to the actual item; color matching between parts is not guaranteed.
