OVERVIEW Item# C33636BLACK

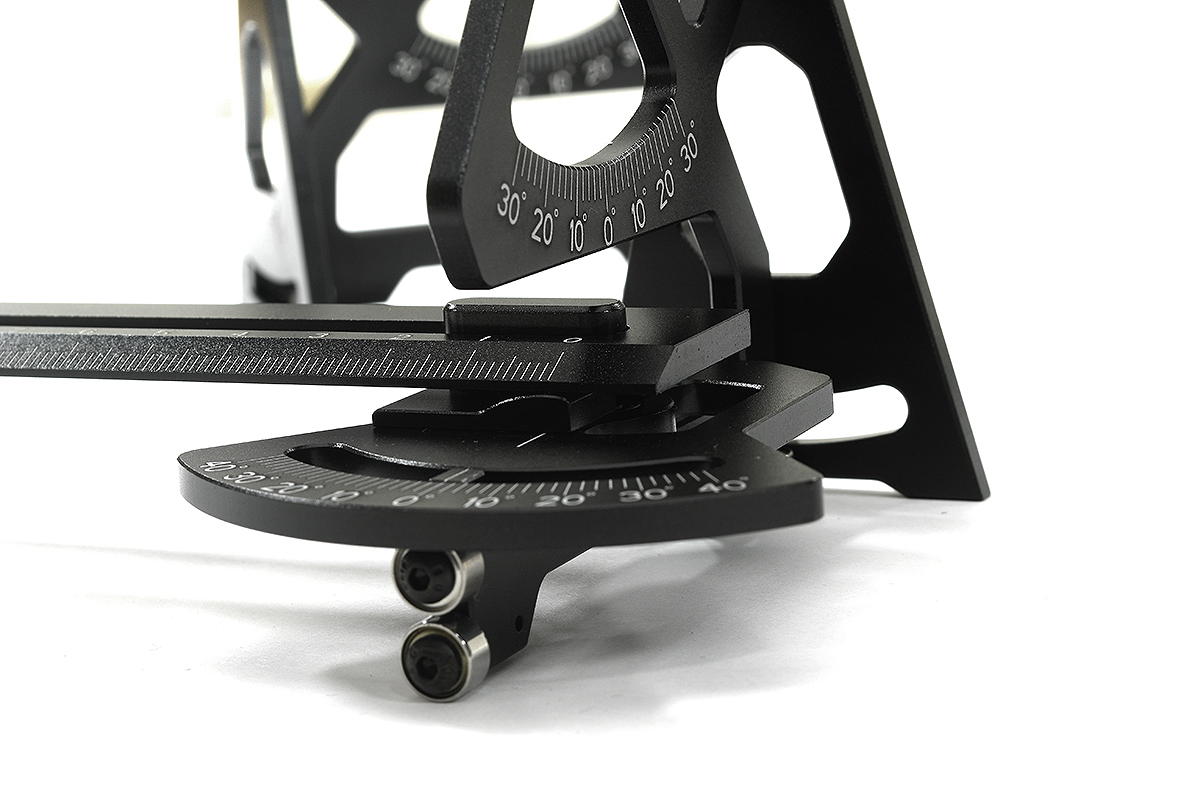

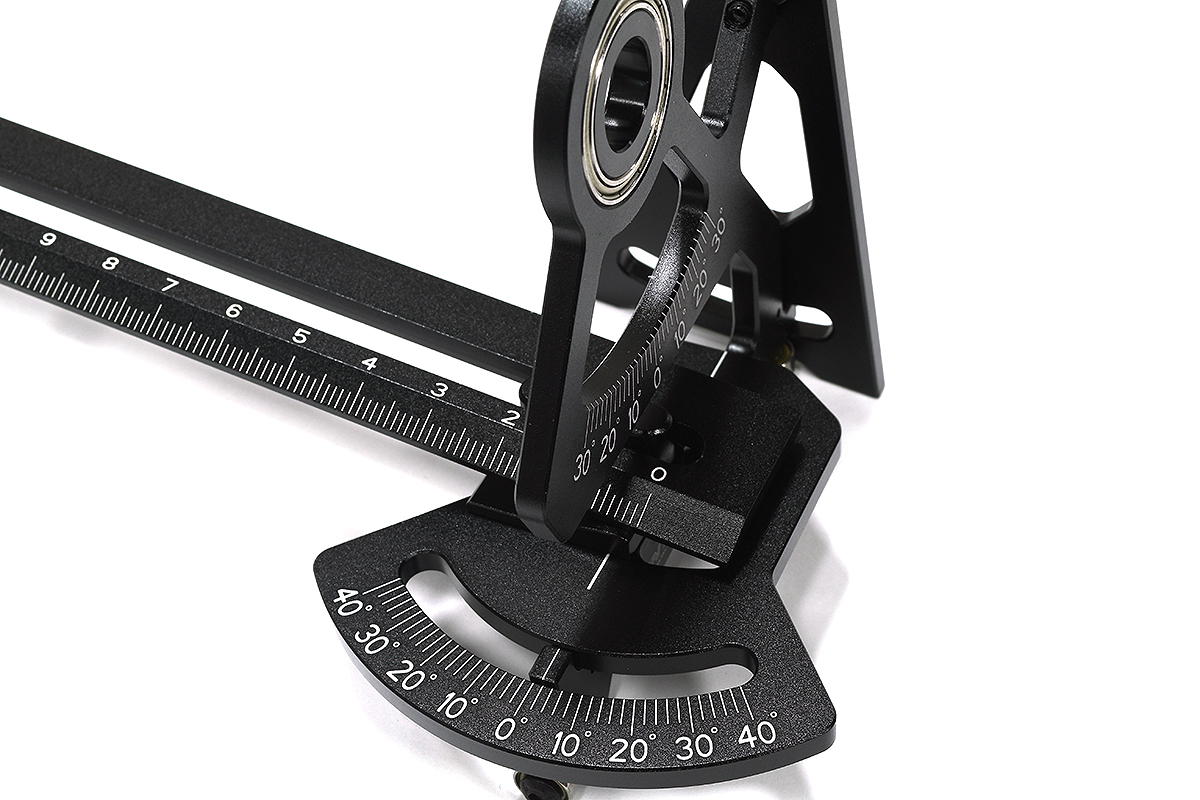

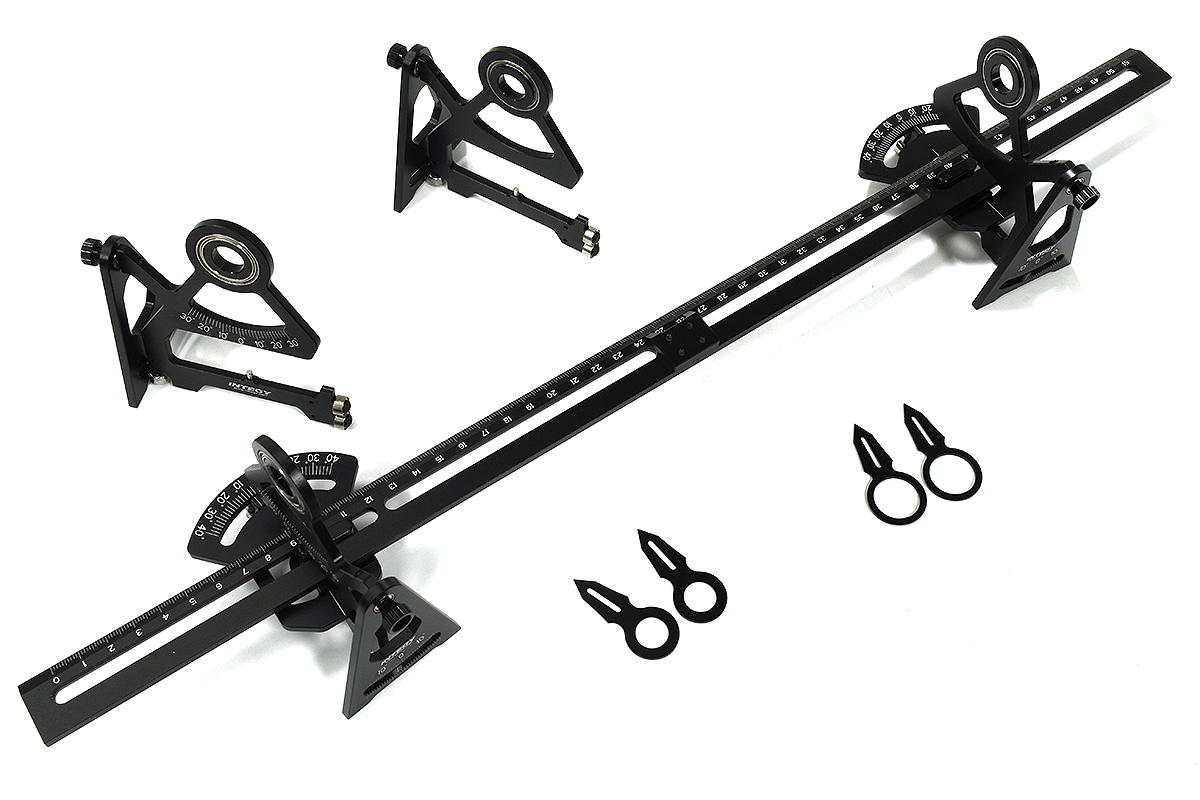

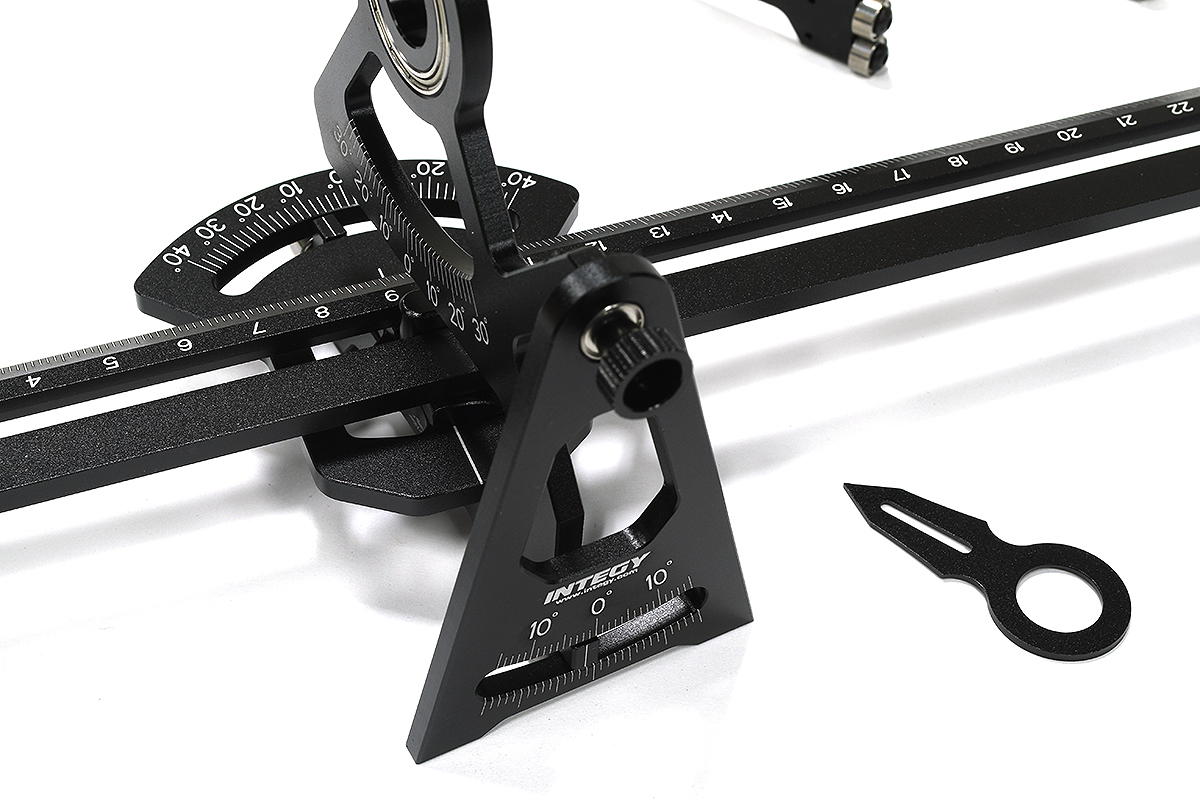

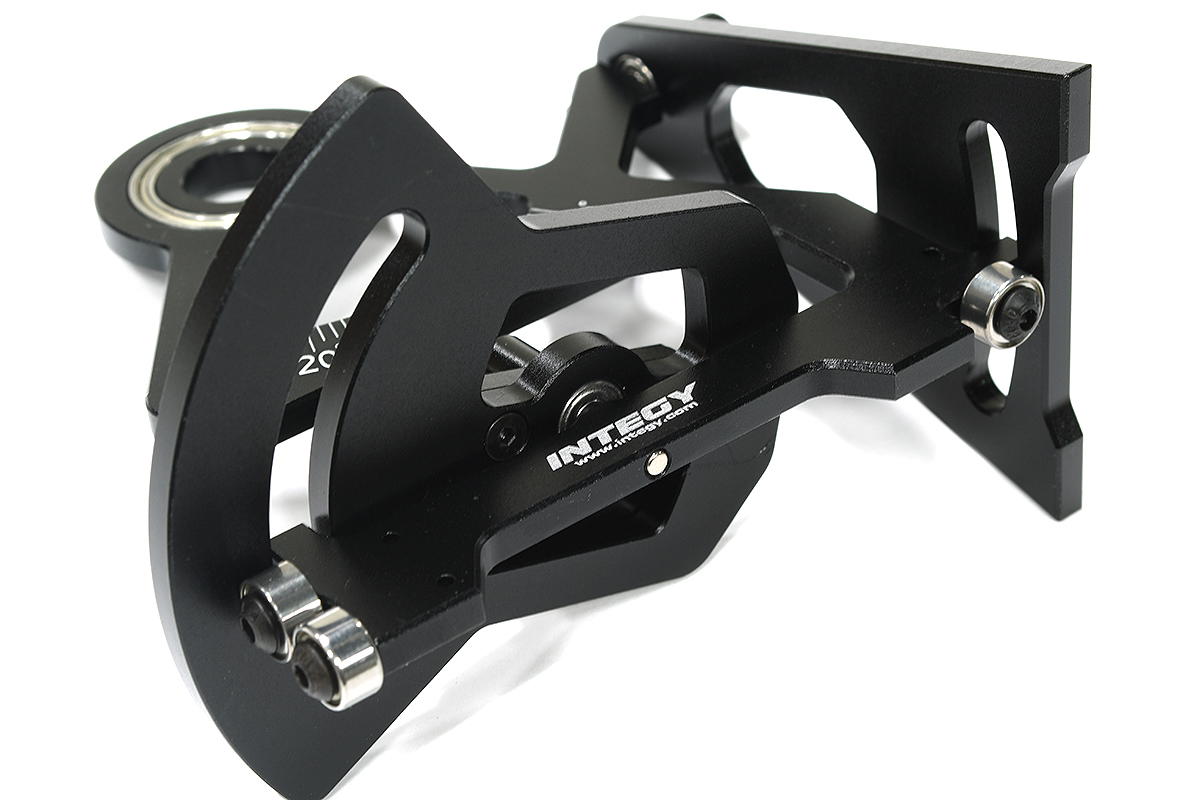

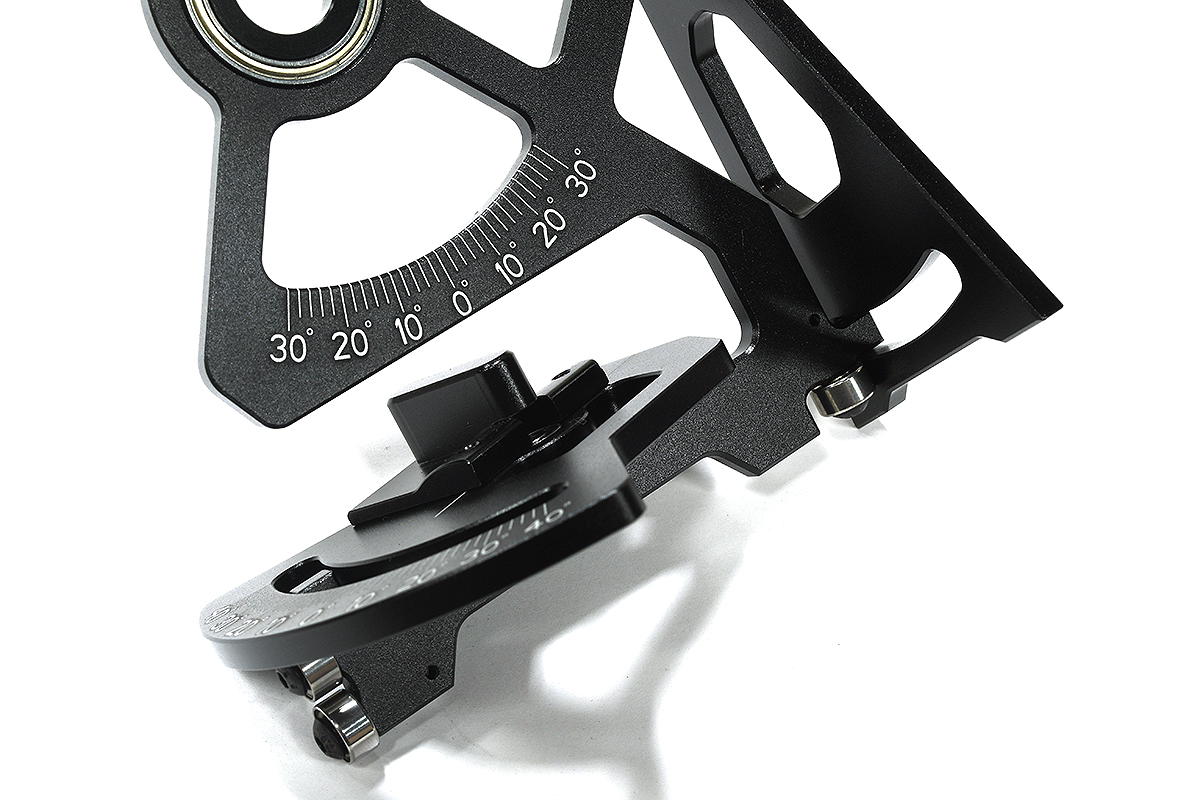

Whether you race or bash, proper chassis setup is still important to allowing your vehicle to perform at its best. For the larger 1/8 & 1/7 vehicles like the Traxxas X-Maxx, Arrma Limitless, Kraton, and similar we offer our newest Z-Universal Setup Station. Precision crafted from aluminum and anodized in protective finish, the Z-Universal Setup Station can measure the camber and caster of your vehicle individually - up to +/-15 degrees of camber and +/-30 degrees of caster. With the included toe bridge, you can also measure +/-40-degrees of toe and track width up to 510mm. The measuring plates pivot on ball bearings for smooth movement and precise readings.
Out of the box, the Z-Universal Setup Station will work with most 1/7 and 1/8-scale buggy, truggy, monster truck, or top speed machine that uses standard 1/8-scale style 17mm hex adapters such as: Arrma Limitless, Kraton; Traxxas X-Maxx, Sledge; Associated RC8/RC8T, SC8; Hobao Hyper Series; HPI/Hot Bodies D8/D8T, Hellfire; Kyosho Inferno Series; Losi 8IGHT/8IGHT-T series; Mugen MBX/MBXT series, OFNA LX One; Tamiya 801x/801xt series, XRAY XB8, 808 series, etc.
The setup station can also be used with our existing line of axle adapters (sold separately) for even more versatility when tuning a wide variety of RC platforms. The Z-Universal Setup Station is available in black or gray anodized finishes.
Barcode: 91789047207
