OVERVIEW SPECIFICATIONS Item# C25179 Barcode: 91789021379

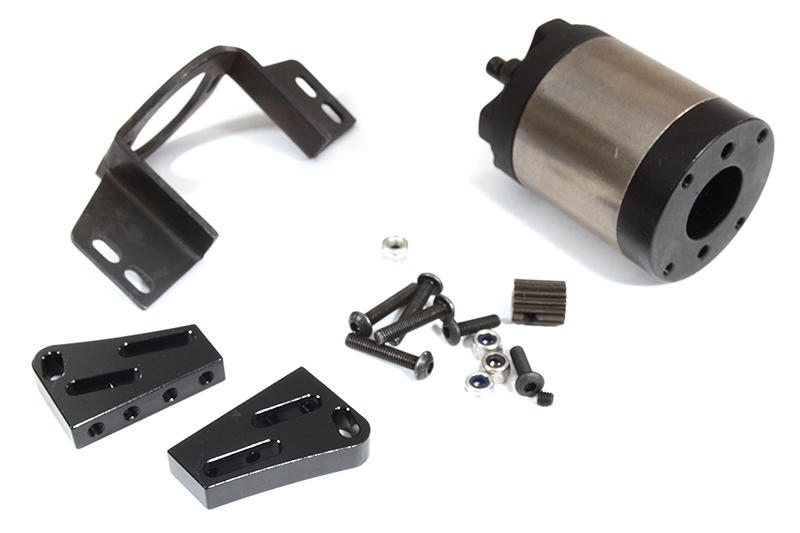

We now offer an improved Planetary Reduction Gearbox for owners of our D90 chassis, as well as anyone looking to build their own custom 1/10-scale rig. The new design features the same, solid alloy/steel gearcase but with a bridged mount and separate mounting legs with slots that allow you to adjust the gearbox angle based on your chassis needs. The Planetary Reduction Gearbox is available in black only.
Gearbox Housing Diameter: 35mm
Gearbox Housing Length: 40mm
Gearbox Mounting Tab Spacing: 67mmx7mm
Gearbox Output Shaft Diameter: 5mm w/Flat
Gearbox Output Shaft Length: 12mm
11t Pinion Gear Shaft Size: 3mm
Motor Mounting Hole Spacing: 25mm
Reduction Ratio: 1:60
Installation Notes
Integy products are designed for experienced RC enthusiasts. Unless included with the product itself, most of our products do not include instructions. The purchaser is responsible for any product assembly/disassembly, any set-up and adjustment, and periodic maintenance. If you need help disassembling your stock vehicle, you will need to refer to the instruction manual/exploded parts view of your particular vehicle, as provided by the manufacturer of your vehicle. If you are unable to assemble and/or install a product, please consult your local Integy dealer for assistance.
All products will require some prep out of the package. Some items (shocks, gearboxes, axles, etc.) are assembled for packaging purposes only, and may require standard prep before installation and usage, such as shimming for proper alignment, checking tightness of all components and fasteners, installing your own shock oil, anti-seize, or grease. Please be sure to apply threadlock on all metal-to-metal interfaces prior to installation; do not just install the item out of the package and assume they have been prepped correctly. Check, adjust, and set/reset all new items when taken out of the package.
Wheel and tire sets may be sold partially assembled for packaging purposes only, and require standard wheel/tire prep before installation and usage. All wheels and tires require CA glue (if press-fit style) or separate assembly (if beadlock style) before being used. Wheels and tires are not always pre-glued from the factory (unless specified in the product name or description).
Unless specified, not all products include hardware; if new or different-sized hardware and/or fasteners are included with the upgrade kit, those are meant to replace the factory hardware. Extra hardware, shims, or spacers may be required for some installations. Some parts may require permanent modification to the vehicle for fitment, and may eliminate certain OEM features. Some items may require modification to the vehicle for proper clearance.
Due to factory supply delays beyond our control, certain products may ship with hardware (screws, washers, etc.) that is different from what is originally shown in the website product photos. Any alternates will be compatible hardware that will not affect the functionality of the product.
Certain Integy-branded items replacing OEM parts may not be compatible with another Integy-branded items due to design language.
Colors shown in product photos are as close to possible to the actual item; color matching between parts is not guaranteed. Parts are for specified usage only. We do not guarantee product compatibility with other aftermarket branded products.
Top Notch Construction
This Planetary gear transmission is very well built and very strong. it has an unbelievable reduction rate! If I counted correctly (which I may not of) it equal roughly 72/1! With a 20T motor at full throttle it is screaming, but moving pretty slow. It has so much low end torque, I would break driveshafts if something bound up. If you want it for your 1/14 tamiya style rig, the mounts will slide over the outside of the chassis rails and you just drill and tap some holes. Keep in mind the Transmission itself is just as big as a 550 can motor., so plan accordingly. One thing to keep in mind, it has NO grease, but it is such a simple design, it's easy to grease up. I might have to use this as a recovery winch drive and get a slightly faster Transmission for my rig.
